World’s Most used Multi-Application Q-Switched Laser Tattoo Removal and Pigmented Lesions Removal Platform.

Q Plus C EVO Indications

Expand your practice with the most versatile Q-Switched Laser

  • Benign Pigmented Lesion Removal

  • Multicolour Laser Tattoo Removal

  • Hair Removal (Optional)

  • Skin Resurfacing/Rejuvenation

  • Acne Scar Revision/ Inflammatory Acne

  • Dermatological Foot Conditions (Skin and Nails)

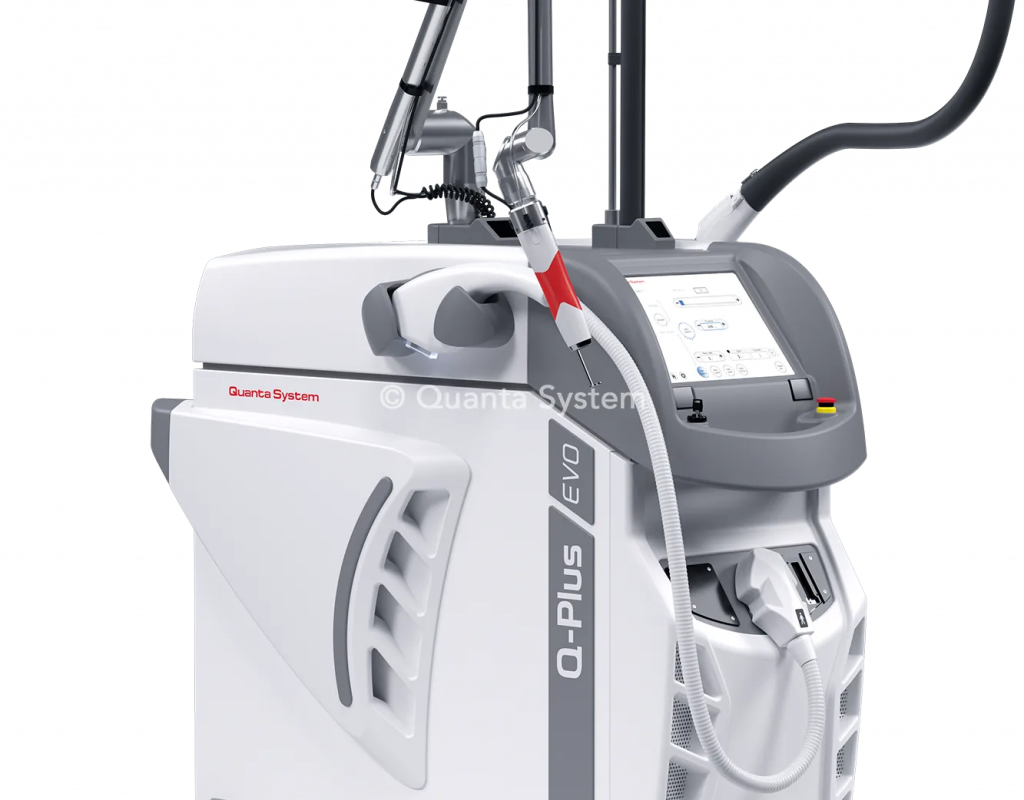

Q Plus C EVO Overview

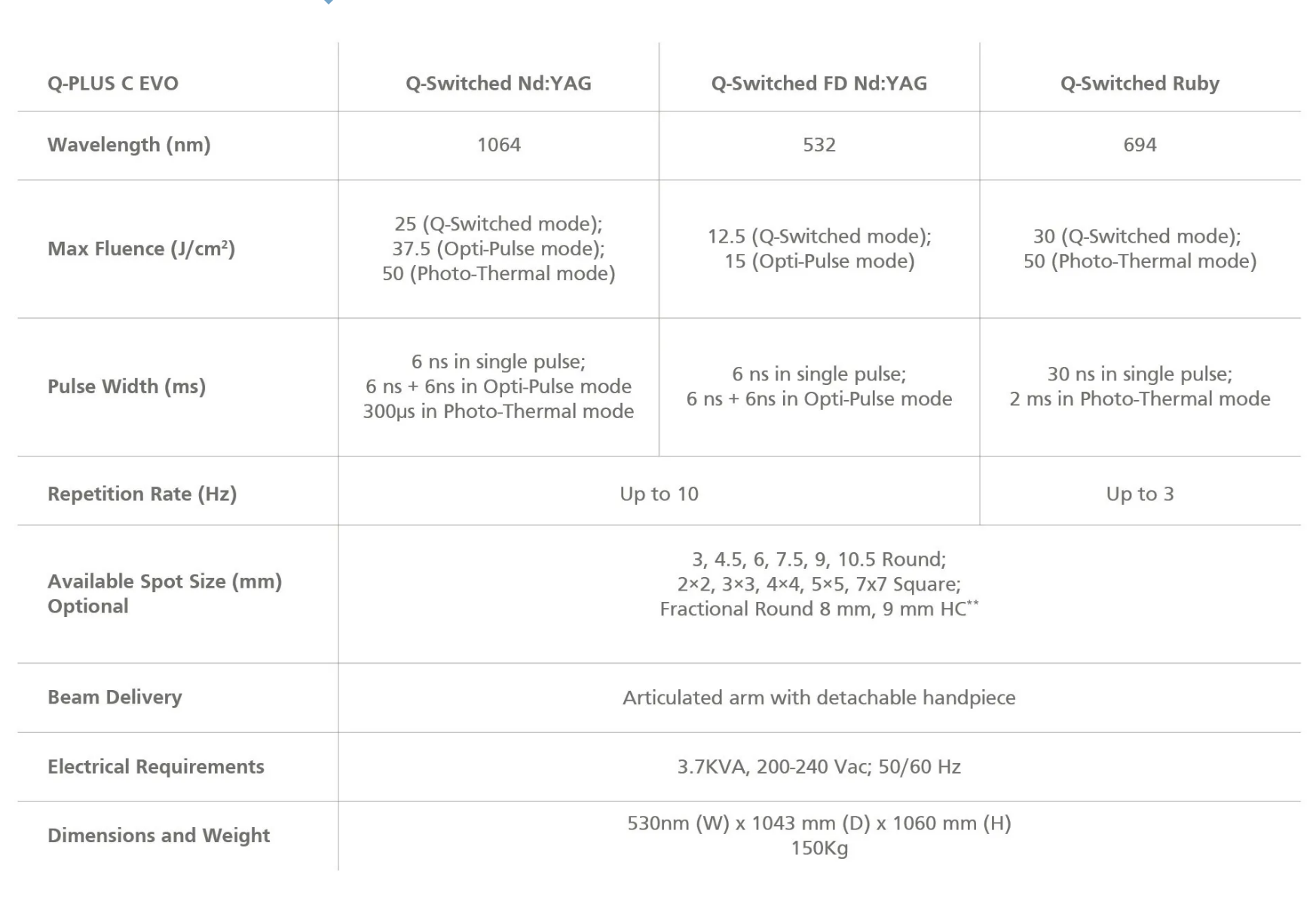

Q Plus C EVO is a versatile Q-Switched laser platform with 2 laser sources in one device. The first source is an Nd:YAG 1064 nm and 532 nm. The second source is a Ruby 694 nm.

Both Ruby and Nd:YAG laser heads are pure high power sources (no dye handpiece), in particular the Ruby laser source is able to deliver energy up to 1.2 J instead of 0.2 J offered by other systems in the market.

The reason why Quanta System has chosen to develop a system with 2 laser sources is because this is the only way to use bigger spot size handpieces for the faded Tattoo Removal and Melasma applications. The ability to use bigger spot sizes that are effective is the key concept of the Q Plus C EVO, because physics demonstrates that the bigger the spot size the deeper penetration into the skin is reached, but in order to increase the spot size we also need to increase the energy delivered.

Q Plus C EVO Advantages

  • 2 Laser Sources in one device: Nd:YAG 1064 nm, 532 nm and Ruby 694 nm

  • Multiple Applications Platform

  • Q-Switched Laser with FASTEST Ruby Laser at 3Hz

  • NO Dye Handpiece Consumables for Excellent ROI

  • THREE Pulse emission modes for maximum versatility

  • Ultimate SAFETY and minimal down-time

  • Optibeam II handpiece with Flat top Square, Round and Fractional Spots

  • FRACTIONAL Handpiece for multi-level scar treatments

Q-Switched Laser Source

With the extremely short pulse duration and high peak power, the Q-Switched laser source can efficiently generate a photo-acoustic effect and considerably reduce thermal interaction with surrounding tissue especially in Laser Tattoo Removal and Pigmented Lesions Treatments. Consequently, undesired tattoos and pigmentations on the skin can be fragmented into small particles to be naturally removed from the body through phagocytosis.

Maximum laser efficacy and Patient Safety

Safer Treatments on All Skin Types with the Optibeam II Technology

The innovative smooth OPTIBEAM II handpiece has a perfect FLAT TOP beam profile and it comes in different flat-top spot shapes at various sizes. Thanks to its advanced optical technology the OPTIBEAM II handpiece maintains uniform fluence and can distribute the laser power homogenously across the different spot sizes, ensuring complete safety, comfort and reduced downtime.

The OPTIBEAM II is available in squared, rounded and fractionated beam profiles.

Benefits of the OPTIBEAM II homogenous Flat Top Beam Profile:

  • Faster Healing time

  • Safer treatment without any “hot points”

  • Reduced risk of complications

  • Comfortable sessions

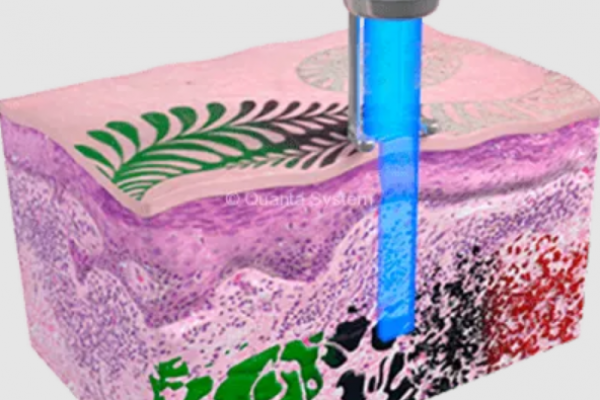

Tattoo Removal

SQUARE FLAT TOP SHAPE – To easily control degree of overlapping during treatment, especially in high fluence procedures

HOMOGENEOUS ENERGY PROFILE – Flat-top beam profile for the maximum laser efficacy and patient’s safety

Achieve more precise coverage to avoid unwanted overlapping, and easier treatment procedures with a reduction in 20% treatment time.

The only Q-Switched Laser with Fractional Technology to TREAT BOTH Tattoo colours and scars. The addition of Fractional Handpiece is perfect for skin resurfacing and rejuvenation with very short recovery time and high safety levels

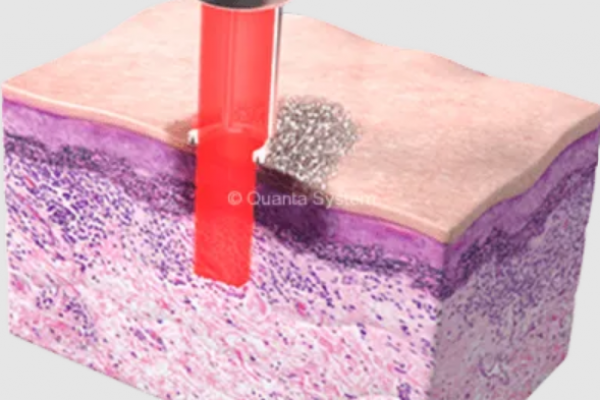

Benign Pigmented Lesions

ROUND FLAT TOP SHAPE – Shape that naturally resembles pigmented lesion profiles

EXTENDED DEPTH OF FIELD – For all dermatological procedures where laser beam collimation is fundamental to maintain constant fluence distribution

DIFFRACTIVE OPTICAL ELEMENT – A uniform energy profile on the spot makes it possible to avoid high power peaks on the skin and increase patient’s safety

MULTIPLE INDICATIONS – It is possible to treat with high efficacy rate a wide range of indications among which melasma, lentigos, freckles, cafè au-lait and Ota & Ito nevus

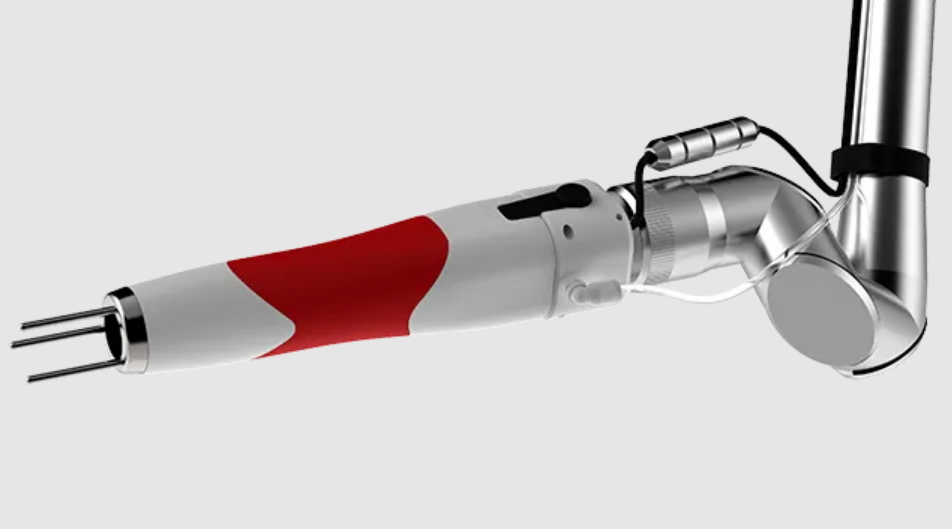

OPTIBEAM II Fractional Handpiece

All the power of a Fractional Q-Switched laser in your hands

Enhance skin resurfacing and scar revision with minimal downtime thanks to the cutting-edge fractional handpiece technology

Utilising a fractional handpiece create zones of laser-induced optical breakdown (LIOB) at Multi-skin level stimulation unlike other lasers on the market which only focus on superficial layers. The surrounding tissue has limited collateral damage in the picosecond domain to ensure rapid healing, minimum side effect and low incidence of Post Inflammatory Hyperpigmentation (PIH). This effectively breaks down scar tissue and improves collagen remodelling.


The Micro-lens array Technology benefits:

  • Focused high-precision microbeams

  • Excellent transmission efficiency ~90%

  • Non-Consumable

  • Cleaner ablative columns for faster healing

  • Reduced risk of complications

  • Optimised Tattoo removal

  • Lightweight ergonomic design

  • Fractional Multi-Level Skin Stimulation

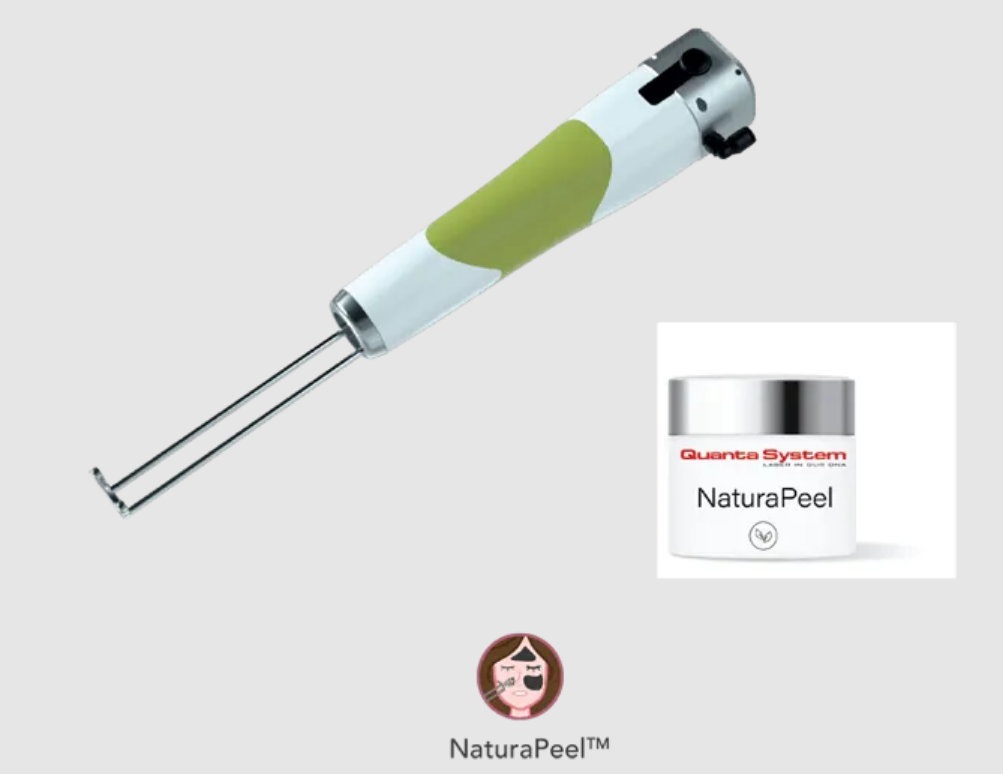

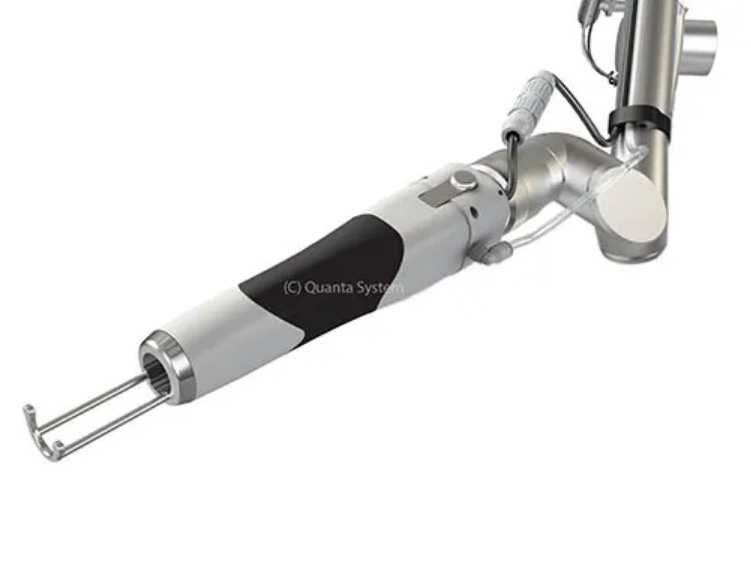

NaturaPeel Handpiece

Fixed Handpiece for cream assisted laser peeling

NaturaPeel is a 6mm Round Spot Flat Top Beam Handpiece based on proprietary OptiBeam II Technology specifically designed for carbon-peel treatments

The Handpiece is equipped with a protective window and a longer tip in order to protect the internal lens from dust particles produced by the carbon-peel treatment.

Unlike traditional carbon-peel treatments NaturaPeel uses an eco-friendly bamboo wood based cream with cosmetic active ingredients for a natural WOW effect.

NaturaPeel Handpiece and Cream can be used with the native Q-Plus C EVO Q-Switched Mode.

Further expanding its versatility and profitability the Q Plus C Evo can be upgraded with Twain Accessories:

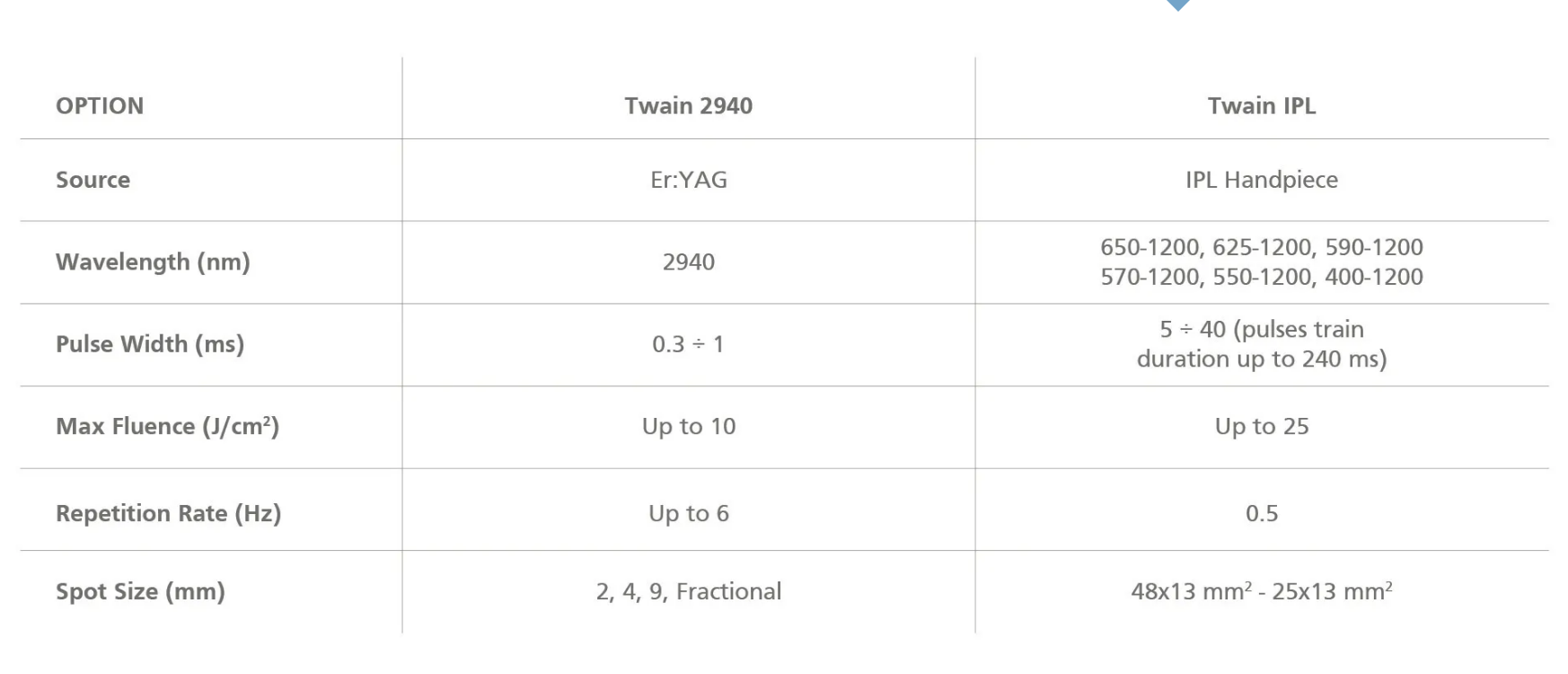

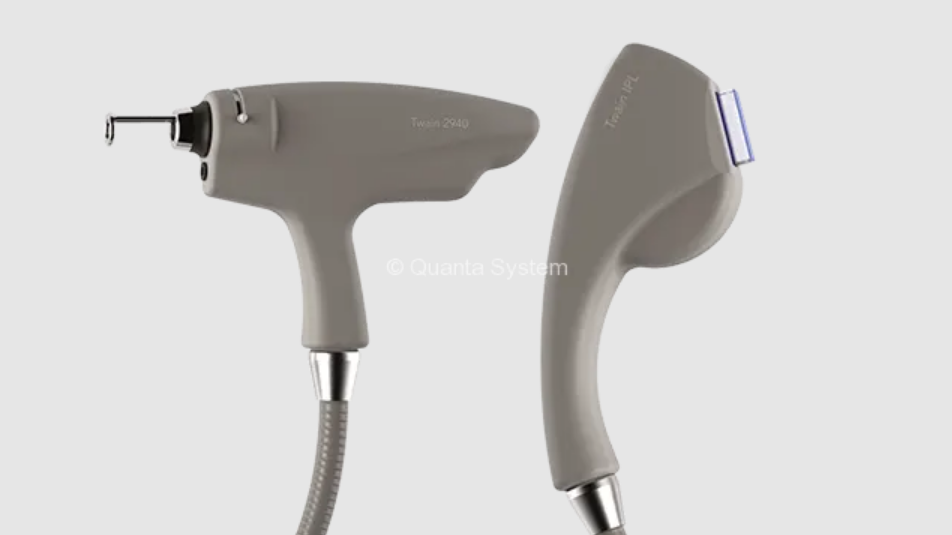

Q Plus C EVO series can be equipped with Twain 2940 and Twain IPL Handpieces through a special Twain Universal Connector.

TWAIN 2940

Twain 2940 is a laser handpiece that fits to the Twain universal connector present on the Quanta System EVO platforms. It has been designed to perform ablation procedures, both fractional and full spot. The Er:YAG laser Twain 2940 nm is able, through the variation of pulse parameters, to remove the layers of skin with minimal thermal damage or produce a higher coagulation suitable for the stimulation of collagen production. Indications for Twain fractional 2940nm:

  • Skin Resurfacing

  • Traumatic and acne scars

  • Epidermal dyschromia

  • Sun and age spots

  • Wrinkles and fine les

  • Full Spot Skin ablation

  • Full Skin Resurfacing



The Q Plus C EVO can be equipped with Twain IPL handpieces. The 6 range of wavelengths available, expand treatments flexibility and versatility.

Indications for Twain IPL:

  • Hair Removal

  • Benign pigmented lesions

  • Skin Rejuvenations procedures

  • Dermatological vascular treatments

  • Active Acne
